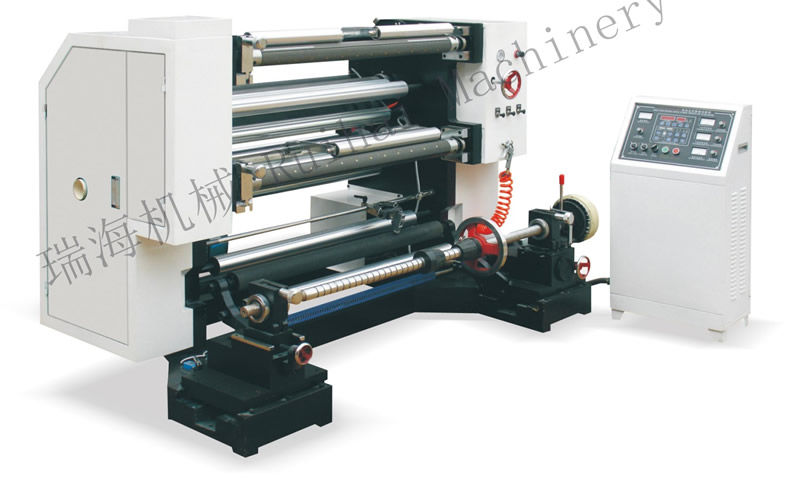

Name:LFQ-B Computer High-speed Slitting And Rewinding Machine
No:LFQ-B
Performance and Characteristics
This machine is suitable for slitting and cutting such various roll materials as BOPP,PET, CPP, CPE, PVC, aluminum foil and paper,etc.
And can slit edge,separate and slit material according to different requirements during production. The machine is a kind of vertical slitting and cutting machines,unwinding and rewinding can be in front of or at the back of the machine.Independent master control screen, more flexible and even easier for operation. Automaticerro-correction of unwinding, photo cell is suitable for tracking the edge and color of transparent material. Unwinding tension adopts magnetic powder brake control. Rewinding adopts magnetic powder clutch control. Automatic waste film blowing device. Automatic meter counting for length of running material and automatic stop working.
Main Technical Parameters
Model |
LFQ-1100 |
LFQ-1300 |
Max.width Of Unwinding |
1100mm |
1300mm |
Max.diameter Of Unwinding |
φ600mm |
φ600mm |
Width Of Slitting |
30mm |
30mm |
Maxdiameter Of Erwinding |
φ400mm |
φ400mm |
Seppd |
10-150m/min |
10-150m/min |
Total Power |
4.5kw |
4.5kw |
Weight |
1500kg |
1800kg |
Overall Dimension(LxWxH) |
1100×1800×1400mm |
1100×2000×1400mm |
